Overview

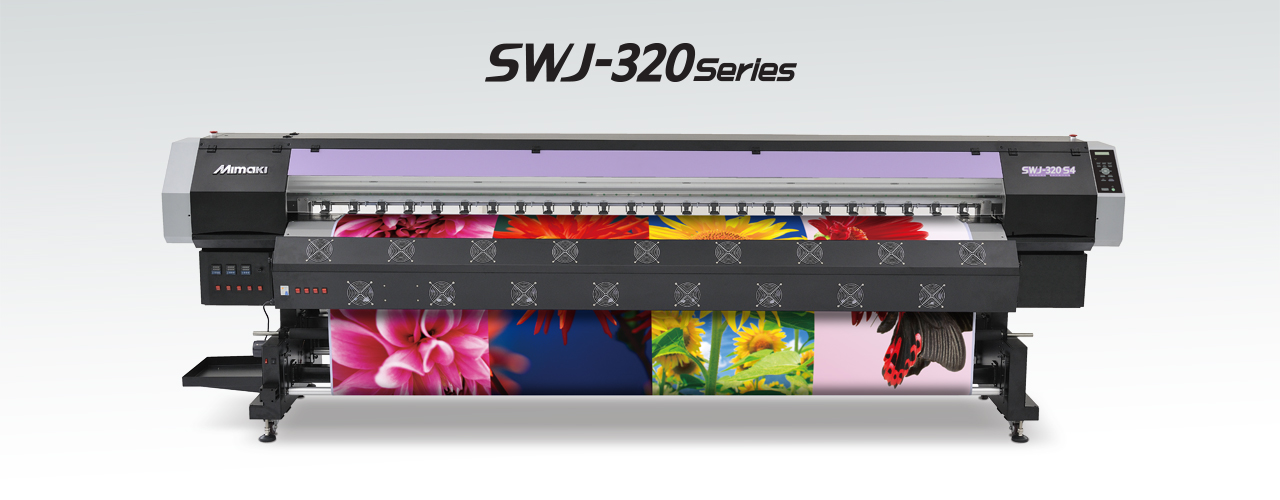

SWJ-320: High productivity Mimaki SWJ-320 super wide format inkjet printer
The SWJ-320 super wide format printer offers productivity and functionality for a wide variety of applications. It can accommodate roll media up to 128 inches (325 cm) wide and print at speeds of up to 893 square feet (83 SqM) per hour. High quality output is achieved through variable dot printing and resolutions up to 1080 dpi. It uses eco-solvent ink in economical 2-liter bottles for sign and graphics applications. Two models are available: S2 with two in-line printheads and S4 with four staggered printheads.
SWJ-320 Series Go Beyond
- Super wide format accommodates media up to 128 inches (325 cm)
- Print speeds up to 893 SqFt (83 SqM) per hour
- High quality print resolution of up to 1,080 dpi
- Variable dot printing for smooth images
- Suitable for indoor or outdoor applications
- Economical 2 liter ink bottles
- Three-way intelligent heater & drying fan unit
- Nozzle Recovery Function
Features
Highlights of the Mimaki SWJ-320
Super wide production
With the SWJ-320 you can print on media up to 128 inches (3250 mm) wide. Produce banners, oversized signage, transit advertising and more.
*The Mimaki SWJ-320S2 and SWJ-320S4 are currently available to South American countries.
Variable dot technology
Three different dot sizes and high resolution printing ensures high quality print results without a grainy appearance.
Uniform media drying
A three-way intelligent heating system results in uniform ink drying across the width of the printer, assuring even image quality. Additionally, a drying fan supplements the heaters so finished prints can be handled immediately.
Product Video of the SWJ-320
Economical eco-solvent inks
Mimaki CS100 eco-solvent inks are packaged in 2-liter ink bottles, which are more economical than ink cartridges. This ink features exceptional stability with a low propensity for nozzle clogging.
Nozzle Recovery Function
The Nozzle Recovery Function enables continued productivity by assigning operational nozzles as substitutes until an outage can be cleared.
Media Feed System
Media up to 220 lbs. (100 kg) is transported evenly without being affected by the varying weight of the roll, eliminating banding caused by irregular feeding.
Applications
What you can do with the Mimaki SWJ-320
- Indoor and outdoor signage
- Vehicle graphics
- Point-of-purchase displays (POS)
- Exhibition and display graphics
- Floor and window graphics
- Banners
- Posters
- and more?
Specifications
Technical overview of the Mimaki SWJ-320
| Print system |
On-demand piezo S2: two in-line printheads S4: four staggered printheads |
| Max print width | 126? (3200 mm) |
| Print resolutions | 600 / 900 / 1200 x 360 / 540 / 720 / 1080 dpi |
| Max print speed |
S2: 559 SqFt (52 SqM) per hour S4: 893 SqFt (83 SqM) per hour |
| Ink type | Mimaki CS100 eco solvent ink: C, M, Y, KL |
| Ink capacity | 2 liter ink bottles |
| Max media width | 128? (3250 mm) |
| Max roll weight | 220 lbs. (100 kg) |
| Operational environment |
Temp: 68? ? 95? F (20? ? 35? C) 35-65% RH (non-condensing) |
| Connectivity | USB 2.0 |
| Power supply | AC 200-240, 50/60Hz |
| Dimensions (W x D x H) | 180 x 47 x 55 (456 x 120 x 140 cm) |
| Weight | 1323 lbs. (600 kg) |
Gallery
Gallery
Brochure
JV300 Series
Technical
Ink for the Mimaki SWJ-320
Eco Solvent ink
- Cyan: 2-liter ink bottle, CS100-C-BB
- Magenta: 2-liter ink bottle, CS100-M-BB
- Yellow: 2-liter ink bottle, CS100-Y-BB
- Black: 2-liter ink bottle, CS100-K-BB
Use the below link for more information on Supplies available for the SWJ-320 Series. (Note that not all Supplies configurations are available in all geographies ? check with your Mimaki customer service representative or Mimaki authorized dealer for available stock.)
SWJ-320 Series Supplies
You may also be interested in:
RasterLink6 software
Sophisticated RIP software maximizes performance. Includes intuitive icons that make option selections easy-to-use with a single-window interface.
SMART Program
The School of Mimaki Application and Resource Training (SMART) Program includes comprehensive training for end-users and dealers. Classes include Vinyl Wraps for Beginners and Optimizing Output using RasterLink6 Software and more. Advanced technical support programs for authorized dealers are also offered.
Please click here for frequently asked questions of SWJ-320 Series
