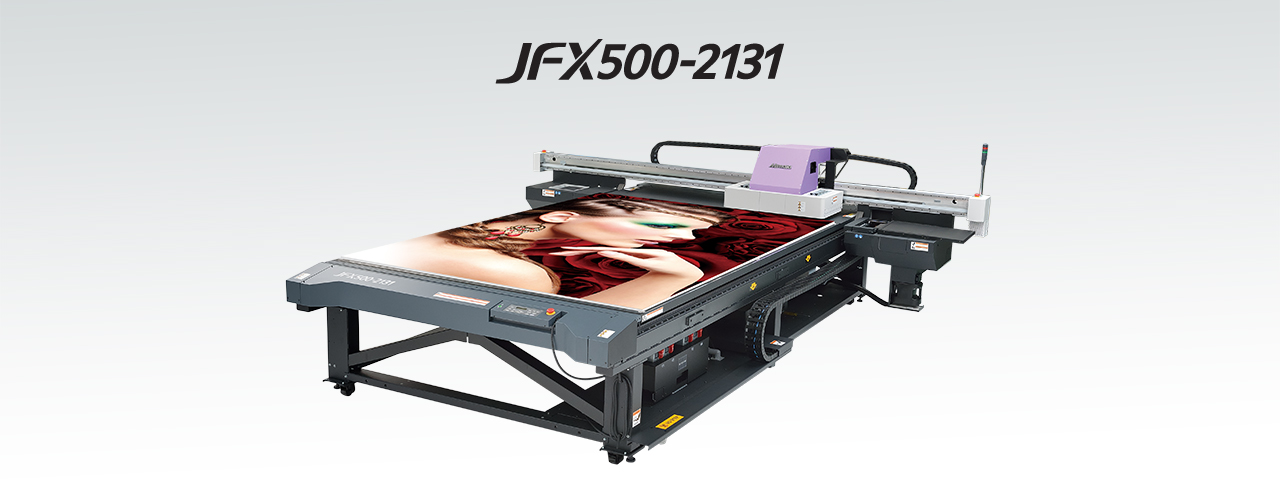

Mimaki JFX500-2131 extra-wide format flatbed UV printer
Mimaki JFX500-2131 extra-wide format flatbed UV printer combines high quality output with easy operation for printing to a variety of rigid substrates. This production model can print on a single rigid sheet up to 82.7” W x 122” L x 2”T, or can be used to print on multiple, smaller rigid pieces in one pass. White and clear inks are available to produce a diverse range of prints for both indoor and outdoor use. It is ideally suited for applications such as backlit displays, signs and posters, interior décor, glass and metal decorative panels and more. The UV-LED lamps offer reduced energy consumption and a longer lamp lifetime.
The Mimaki JFX500-2131 Go Beyond Conventional
- Fast printing speeds up to 646 SqFt (60 SqM) per hour
- Print up to 20 – 4’ x 8’ boards per hour
- Oversized table can fit two standard 4’ x 8’ boards or a variety of pre-cut pieces
- Table size 82.7” W x 122” L (2100 x 3100 mm)
- Objects up to 2” thick (50 mm)
- Layout pins ensure proper media alignment
- High quality print resolution of up to 1,200 dpi
- Variable dot printing and Mimaki Advanced Pass system deliver smooth gradients
- Zoned vacuum table holds media flat
- UV inks supplied in high-capacity 1 liter bottles
- White, Clear, and Primer available
- LUS-150 inks are flexible up to 150%
- LH-100 inks offer high scratch and chemical resistance
- Nozzle Check Unit and Nozzle Recovery System
- Low-energy UV-LED lamps last five years or more
Features
Highlights of the Mimaki JFX500-2131
Extra-Large Table
The oversized table can print an entire 10-foot by nearly 7-foot wide piece, or print multiple smaller boards using the four selectable vacuum zones. It can also print to pre-cut, irregularly-shaped pieces.
Layout pins
Standard layout pins and scale ensure board alignment, which is particularly useful when printing full bleeds.
Variable Drop Printing
The advantage of variable drop printing is most apparent when printing color gradations in light or pastel colors.
JFX500-2131 Product Video
Anti-Banding Technology
Variable drop printing combined with Mimaki’s Advanced Pass System (MAPS) technology ensures precise and accurate print quality throughout the printing process, greatly reducing the appearance of banding and resulting in a smoother image.
White, Primer and Clear
Add White ink to print onto clear acrylic to create backlit panels or to print on wood, metal, or non-white surfaces. Mimaki Circulation Technology regularly circulates White ink between the supply and the print head to prevent settling. Primer helps the ink adhere to surfaces such as glass. Clear ink adds ‘pop’ and protection to finish a piece.
UV-LED Technology
Mimaki’s UV-LED system uses less energy than other UV types, has a longer life and can print into media that could be damaged by higher-heat systems.
Applications
Applications of JFX500-2131
What you can do with the Mimaki JFX500-2131
- Signs and posters
- Point-of-purchase displays
- Exhibition graphics
- Backlit panels
- Interior decor
- Packaging prototypes
- Specialty and industrial applications
- Acrylics
- Polycarbonates
- PVC
- Glass
- Aluminium
- Metal
- Polyesters
- Foam board
- Styrene
- Wood
- Stone
- and more…
The range of possible applications is practically limitless.A selection:
- Art reproduction
- Backlit graphics
- Construction signs
- Displays
- Exhibition signs
- Rigid packaging
- Lenticular (printing with 3D effects)
- ID cards
- Logos (3D)
- Operation panels
- Promotional items
- Relational gifts
- Accessories
Specifications
Technical overview of the Mimaki JFX500-2131
| Print system | On-demand piezo head (6 print heads with 3 staggered configurations) |
|
Max print area/ Max media size |
82.7” W x 122” L (2100 mm W x 3100 mm) |
| Max media thickness | U2.0” (50 mm) |
| Print resolutions | 300, 600, 900, 1200 dpi |
| Max print speed | 645.8 SqFt/Hr (60 SqM/Hr) |
| Absolute accuracy | +/- 0.01” (0.3 mm) or +/- 3% from specified print distance |
| Repeatability | +/- 0.008” (0.2 mm) or +/- 1% from specified print distance |
| Ink type |
Mimaki LUS-150 UV ink: C, M, Y, K, W Mimaki LH100 UV ink: C, M, Y, K, W, Clear Mimaki PR-100 UV Primer |
| Ink capacity | 1-liter bulk ink system standard |
| UV device | Equipped with UV LED |
| Flatbed table |
Vacuum system (standard), 4 user-selectable zones Layout pins (standard) |
| Operational environment |
Temp: 59? – 86? F (15? – 30? C) 35-65% RH (non-condensing) |
| Connectivity | USB 2.0 |
| Power supply | AC 200-240V, 50/60 Hz |
| Dimensions (W x D x H) | 161.4 x 175.7 x 58.7 inches (410 x 446 x 149 cm) |
| Weight(*) | 2983 lbs. (1353 kg) |
(*)Ink Station is not included in the dimensions and the weight.
Gallery
Gallery
Brochure
JV300 Series
Technical
Ink for the Mimaki JFX200-2513
LUS-150 inks (all 1 liter bottles)
- Cyan, LUS15-C-BA
- Magenta, LUS15-M-BA
- Yellow, LUS15-Y-BA
- Black, LUS15-K-BA
- White, LUS15-W-BA
LH-100 inks (all 1 liter bottles)
- Cyan, LH15-C-BA
- Magenta, LH15-M-BA
- Yellow, LH15-Y-BA
- Black, LH15-K-BA
- White, LH15-W-BA
- Clear, LH15-W-BA
Primer
- Primer, PR100-Z-BA, 1 liter bottle
Use the below link for more information on Supplies available for the JFX500-2513. (Note that not all Supplies configurations are available in all geographies – check with your Mimaki customer service representative or Mimaki authorized dealer for available stock.)
JFX500-2513 Series Supply
