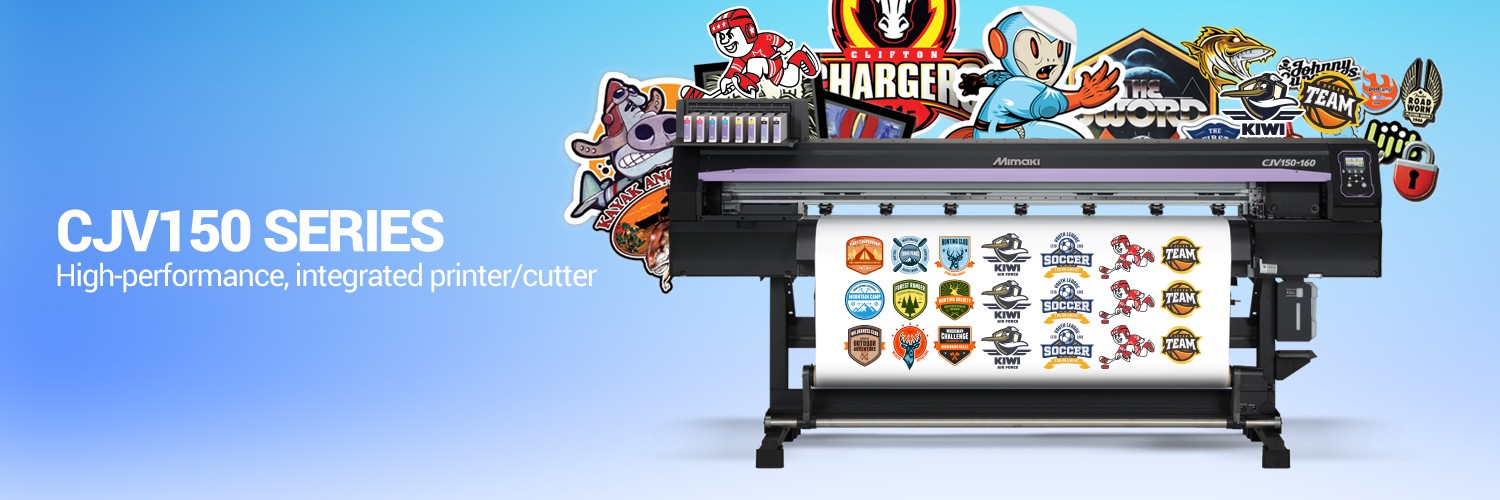

Mimaki CJV150 Series: High Quality Cut and Print
Mimaki CJV150 Series high-speed solvent printer cutter devices go beyond extraordinary to deliver a wide range of applications. Eco solvent inks in a variety of colors including Silver and advanced printing technologies means you can produce anything in a single unit that fits your workflow. Precision cutting capability gives you the ability to deliver custom and short-run items such as labels, T-shirt transfers or package prototypes. With the Mimaki CJV150 Series printers’ superb quality, color fidelity and flexibility plus cutting capability you’ll go beyond the expected to increase your business and deliver more than your customers can imagine.
Mimaki CJV150 series GO BEYOND Conventional
- Fast printing speeds up to 605 SqFt (56.2 SqM) per hour
- Cut and print capability on one unit
- High quality print resolution of up to 1,440 dpi
-
Four model widths:
- 32-inch (800 mm)
- 43-inch (1090 mm)
- 54-inch (1361 mm)
- 64-inch (1610 mm)
-
Choice of eco solvent or dye sublimation ink sets:
-
Eco solvent: 10 color options including Silver, White, Orange and
Light Black inks - Dye sublimation: vibrant 6 color dye sub options
-
Eco solvent: 10 color options including Silver, White, Orange and
- Nozzle Check Unit and Nozzle Recovery System
- 3-way intelligent heater
Features
Highlights of the Mimaki CJV150 Series
Cut and Print Capability
The ability to pre-cut before printing prevents common problems such as film separation and other issues related to post-cutting on thin materials.
Eco Solvent or Dye Sublimation
The CJV150 Series can be configured for either eco solvent printing for sign and graphics applications or for dye-sublimation printing for textile and apparel transfer sublimation applications.
Expanded Eco Solvent Ink Set with Silver
The SS21 eco solvent ink set includes ten colors including Silver, which can be used to create metallic color effects for labels, decals and package prototyping jobs.
Uninterrupted Ink Supply System (UISS)
When printing in CMYK, CJV150 Series printers can be configured with two ink cartridges per color. Utilizing the UISS (Uninterrupted Ink Supply System) when one cartridge is emptied, the printer automatically switches to the full cartridge to deliver continuous imaging.
Precision Ink Drop Placement
Mimaki designed an optimum waveform enabling the print head to jet each ink color at the appropriate jetting angle without losing precise ink droplet circularity.
Anti-Banding Technology
Variable drop printing combined with MAPS3 (Mimaki Advanced Pass System 3) technology ensures precise and accurate print quality throughout the printing process, greatly reducing the appearance of banding and resulting in a smoother image.
Uniform Media Drying
A Mimaki-patented, three-way intelligent heating system results in uniform ink drying across the width of the printer, assuring even image quality.
- Pre-heater: Heats media to the optimum temperature before printing.
- Print heater: Dries ink after it lands on media before it bleeds, improving color development.
- Post-heater: Enhances ink drying and achieves stable take-up.
- Top blower: Air blower supports drying of ink.
Applications
What you can do with the Mimaki CJV150 Series
With eco solvent inks:
- Signage
- Vehicle graphics
- Point-of-purchase displays
- Banners
- Posters
- Exhibition graphics
- Window clings
- and more?
With dye sublimation inks:
- Flags
- Fashion & Sportswear
- Promotional
- Exhibition soft signage
- T-shirt transfers
- and more?
With on-board cutting:
- Labels
- Decals
- Vehicle markings
- Apparel transfers
- and more?
Specifications
Technical overview of the Mimaki CJV150 Series
| Print System |
On-demand piezo, one print head per color 8 channels for a variety of ink configurations |
| Maximum print width |
CJV150-75: 31.4 inches (800 mm) CJV150-107: 42.9 inches (1090 mm) CJV150-130: 53.5 inches (1361 mm) CJV150-160: 63.3 inches (1610 mm) |
| Print resolution | 360, 540, 720, 1,080, 1,440 dpi |
| Ink Type/Color |
Mimaki SS21 Eco-Solvent ink: C, M, Y, K, Lc, Lm, Lk, Or, W, Si Mimaki Sb54 dye sublimation ink: Bl, M, Y, K, Lbl, Lm |
| Ink Capacity |
440ml cartridges available for most colors 220ml cartridges only for Silver and White ink Optional: 2-liter bulk ink system standard for most colors |
| Maximum media width |
CJV150-75: 31.8 inches (810 mm) CJV150-107: 43.1 inches (1100 mm) CJV150-130: 53.9 inches (1371 mm) CJV150-160: 63.7 inches (1620 mm) |
| Max roll weight | 88 lbs. (40 kg) |
| Media thickness | 1.0 mm |
| Operational environment |
Temp: 59? ? 86? F (15? ? 30? C) 35-65% RH (non-condensing) |
| Connectivity | USB 2.0 |
| Power supply | Single-phase AC 100-120V (AC 220-240V) x2 |
| Dimensions (W × D × H) |
CJV150-75: 77 x 28 x 55 inches (195 x 71 x 140 cm) CJV150-107: 89 x 28 x 55 inches (226 x 71 x 140 cm) CJV150-130: 99 x 28 x 55 inches (251 x 71 x 140 cm) CJV150-160: 109 x 28 x 55 inches (277 x 71 x 140 cm) |
| Weight |
CJV150-75: 278 lbs. (126 kg) CJV150-107: 313 lbs. (142 kg) CJV150-130: 346 lbs. (157 kg) CJV150-160: 370 lbs. (168 kg) |
Gallery
Gallery
Brochure
JV300 Series
Technical
Ink for the Mimaki CJV150 Series
Eco Solvent ink (SS21)
- Cyan: 2L bulk ink pack, PC-0588C, 440ml cartridge, SPC-0501C
- Magenta: 2L bulk ink pack, PC-0588M, 440ml cartridge, SPC-0501M
- Yellow: 2L bulk ink pack, PC-0588C, 440ml cartridge, SPC-0501C
- Black: 2L bulk ink pack, PC-0588K, 440ml cartridge, SPC-0501K
- Light Magenta: 440ml cartridge, SPC-0501LC
- Light Black: 440ml cartridge, SPC-0501LK
- Orange: 440ml cartridge, SPC-0501OR
- White: 220ml cartridge, SPC-0504W-2
- Silver: 220ml cartridge, SPC-0504Si
Dye Sublimation ink (Sb54)
- Blue: 2L bulk ink pack, SB54-BL-2L, 440ml cartridge, SB54-BL-44
- Magenta: 2L bulk ink pack, SB54-M-2L, 440ml cartridge, SB54-M-44
- Yellow: 2L bulk ink pack, SB54-Y-2L, 440ml cartridge, SB54-Y-44
- Black: 2L bulk ink pack, SB54-K-2L, 440ml cartridge, SB54-K-44
- Light Blue: 2L bulk ink pack, SB54-LBL-2L, 440ml cartridge, SB54-LBL-44
- Light Magenta: 2L bulk ink pack, SB54-LM-2L, 440ml cartridge, SB54-LM-44
Use the below link for more information on Supplies available for the CJV150 Series. (Note that not all Supplies configurations are available in all geographies ? check with your Mimaki customer service representative or Mimaki authorized dealer for available stock.)
CJV150 Series Supplies
You may also be interested in:
RasterLink6 software
Sophisticated RIP software maximizes performance. Includes intuitive icons that make option selections easy-to-use with a single-window interface.
SMART Program
The School of Mimaki Application and Resource Training (SMART) Program includes comprehensive training for end-users and dealers. Classes include Vinyl Wraps for Beginners and Optimizing Output using RasterLink6 Software and more. Advanced technical support programs for authorized dealers are also offered.
Please click here for frequently asked questions of CJV150 Series
