Overview

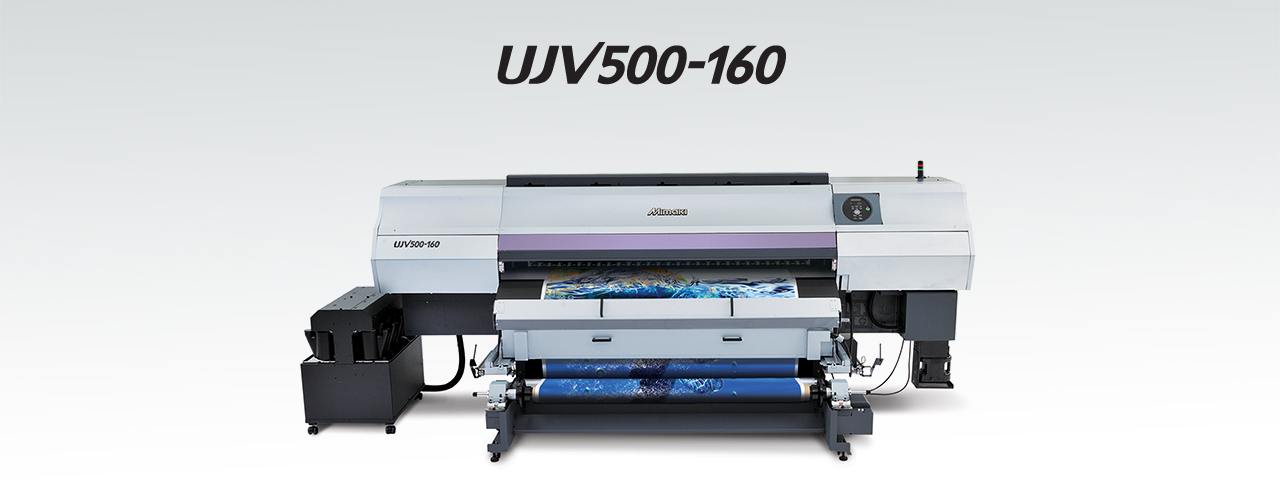

UJV500-160: wide format UV inkjet printer delivers high productivity with exceptional outdoor durability.
The UJV500-160 printer is a high-productivity model with inks that offer exceptional weatherability for outdoor applications. The UJV500-160 printer employs Mimaki LUS-200 UV ink that was jointly-developed with 3M Company. When applied onto select 3M media and installed using 3M guidelines, this ink carries the 3MTM MCSTM Warranty, widely recognized as the industry’s most comprehensive finished graphics warranty. LUS-200 inks are ideal for applications with curved surfaces such as vehicle wraps and fleet graphics where stretching could crack other inks.
The UJV500-160 Go Beyond
- High productivity of up to 646 SqFt/hr (60 SqM/hr)
- Outdoor durability with LUS-200 inks
- 3M MCS Warranty available
- Improved UV curing
- White ink available
- Variable dot printing and Mimaki Advanced Pass System (MAPS) for exceptional image quality
- Nozzle Recovery System
- One liter ink bottles for all colors
- Three-way intelligent heater
- 64-inch (1610 mm) width
Features
Highlights of the Mimaki UJV500-160 Printer
High Speed Printing
The UJV500-160 printer can print at high speeds up to 646 SqFt/Hr (60 SqM/h) in a CMYK configuration. A speed of 258 SqFt/hr (24 SqM/hr) can be reached while printing with white ink. The six 2 inch print heads are aligned in a staggered array and optimized to eject ink effectively.
3M MCS Warranty Available
Mimaki LUS-200 UV ink was jointly-developed with 3M Company. When applied onto select 3M media and installed using 3M guidelines, this ink carries the 3M MCS Warranty, which is widely recognized as the industry’s most comprehensive finished graphics warranty.
Car Wrapping Video printed on the Mimaki UJV500-160
Flexibility for Fleet and Other Curved Applications
LUS-200 inks can stretch up to 200 percent after curing without cracking, making this combination ideal for fleet graphics and other curved surfaces.
Variable Drop Printing & MAPS Produce Smooth Images
The advantage of variable drop printing is most apparent when printing color gradations in light or pastel colors. Mimaki Advanced Pass System (MAPS) implements printing in a gradational mask pattern to diminish the appearance of banding.
Long-lasting UV-LED Technology
The UV-LED lamps used in the UJV500-160 printer generate very little heat. Unlike metal halide lamps, UV-LED lamps light up only where the image is printed, saving energy and lamp life.
Applications
What you can do with the Mimaki UJV500-160 Printer
Applications
- Vehicle wraps
- Fleet marking
- Signage
- Point-of-purchase displays
- Window graphics
- Banners
- Posters
- Exhibition graphics
- and more?
Substrates
Roll : Vinyl, banner, paper, canvas, transparent PET film, and more.
Specifications
Technical overview of the Mimaki UJV500-160 Printer
| Print system | On-demand piezo, six 2-inch print heads in a staggered array |
| Max print width | 63.3 inches (1610 mm) |
| Print resolutions | 300, 600, 900, 1200 dpi |
| Max print speed | 646 SqFt/Hr (60 SqM/Hr) |
| Ink type |
Mimaki LUS-150 UV ink: C, M, Y, K, W Mimaki LUS-200 ink: C, M, Y, Y* *3M MCS Warranty available only with Mimaki LUS-200 ink |
| Ink capacity | 1 liter bottle |
| Maximum media width | 63.7 inches (1620 mm) |
| Max roll weight | 132 lbs. (60 kg) |
| Operational environment |
Temp: 59? ? 86? F (15? ? 30? C) 35-65% RH (non-condensing) |
| Connectivity | USB 2.0 |
| Power supply | Single-phase AC 100-120V (AC 220-240V) |
| Dimensions (W x D x H) |
152 x 78 x 66 inches (385 x 298 x 169 cm)** **printer only (not including Ink Station) |
| Weight | 1764 lbs. (800 kg) |
Gallery
Gallery
Brochure
JV300 Series
Technical
Ink for the Mimaki UJV500-160 Printer
LUS-150 UV Ink
- Cyan: 1 liter ink bottle, LUS15-C-BA
- Magenta: 1 liter ink bottle, LUS15-M-BA
- Yellow: 1 liter ink bottle, LUS15-Y-BA
- Black: 1 liter ink bottle, LUS15-K-BA
- White: 1 liter ink bottle, LUS15-W-BA
LUS-200 UV Ink
- Cyan: 1 liter ink bottle, LUS20-C-BA
- Magenta: 1 liter ink bottle, LUS20-M-BA
- Yellow: 1 liter ink bottle, LUS20-Y-BA
- Black: 1 liter ink bottle, LUS20-K-BA
